High-Precision Bellows Load Cell WL-129 Sealed Solution For Dosing & Tank Weighing 5-500kg Stainless Steel

Brand Name : Brans

Model Number : WL-129

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T

Supply Ability : 800pcs/Month

Delivery Time : one week

Capacity : 0.1/0.15/0.2/0.25/0.3/0.5/1/1.5/2/2.5/3/5/7.5/10t

Combined Error : 0.018%F.S.

Non-linearity : 0.018%F.S.

Repeatability : 0.018%F.S.

Rated Output : 2.0±0.05mV/V

Zero Balance : ±2%F.S.

Insulation Resistance : >5000MΩ/100VDC

Material : Stainless Steel

Safe Overload : 150%F.S.

Protection Class : IP68 (Customizable)

Operation Temp. : -30~70°C

Cable Size : Ф5.4x1500mm (Customizable)

Nominal Displacement : 0.24/0.3/0.29/0.28/0.27/0.31/0.39/0.6mm

Contact Now

Features & Applications


    • The Shear Beam Load Cell features a robust bellow design, ensuring stable and accurate weight measurement.

    • Crafted from high-quality stainless steel, the Shear Beam Load Cell offers exceptional durability and corrosion resistance.

    • With capacities ranging from 5kg to 500kg, the Shear Beam Load Cell is suitable for light to medium-duty weighing tasks.

    • The Shear Beam Load Cell is hermetically sealed with metal bellows, providing reliable protection in harsh environments.

    • Optimized for parallel connection, the Shear Beam Load Cell allows easy integration into multi-sensor weighing systems.

    • Delivering high precision with mg-level resolution, the Shear Beam Load Cell excels in applications requiring fine measurement accuracy.

    • Mainly used in platform and conveyor scales for dosing and level measurement, the Shear Beam Load Cell also integrates seamlessly into weighing modules for tank weighing and similar industrial applications.




Specifications

Capacity 5/10/20/30/50/100/200/500kg
Combined Error 0.018%F.S.
Non-linearity 0.018%F.S.
Repeatability 0.018%F.S.
Rated Output 2.0±0.05mV/V
Zero Balance ±2.0%F.S.
Insulation Resistance ≧5000MΩ/100VDC
Recommended Excitation 5~15VDC
Material Stainless Steel
Safe Overload 150%F.S.
Protection Class IP68(Customizable)
Operation Temp. -30~70°C
Cable Size Ф5.4x1500mm(Customizable)
Nominal Displacement 0.24/0.3/0.29/0.28/0.27/0.31/0.39/0.6mm



Dimensions(mm)

High-Precision Bellows Load Cell WL-129 Sealed Solution For Dosing & Tank Weighing 5-500kg Stainless Steel

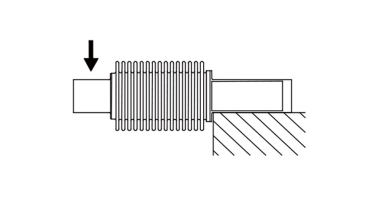

Load direction


High-Precision Bellows Load Cell WL-129 Sealed Solution For Dosing & Tank Weighing 5-500kg Stainless Steel



Wiring code

High-Precision Bellows Load Cell WL-129 Sealed Solution For Dosing & Tank Weighing 5-500kg Stainless Steel



Shipping & Packaging

To ensure safe arrival at your location, the load cell will be carefully packaged and shipped. The packing process is as follows:

1. The load cell will be placed in a sturdy cardboard box to protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is attached to the box.
7. The package is shipped using a reliable and trusted freight carrier.


Once the package is shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the delivery address to receive the package to avoid any delays or problems.
